Author Topic: Tulkas' simulator - progress  (Read 209914 times)

Offline eagle_wen

  • Maj. General
  • *****
  • Join Date: Apr 2006
  • Location: Mol, Belgium
  • Posts: 308
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service
    • Awards
Re: Tulkas' simulator - progress
« Reply #135 on: August 16, 2010, 04:57:07 PM »
No problem at all. If you need more info...just ask.

Werner

BTW: nice seat  :thumbsup:
Seeya

Werner

Offline Tulkas

  • General
  • ******
  • Join Date: Sep 2007
  • Location: Norway
  • Posts: 818
  • Country: es
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum
    • Awards
Re: Tulkas' simulator - progress
« Reply #136 on: August 17, 2010, 03:24:10 AM »
Thank you very much for the feedback guys.

Ripley -> PM inbound, thanks

Cheers

Tulkas

Offline Tulkas

  • General
  • ******
  • Join Date: Sep 2007
  • Location: Norway
  • Posts: 818
  • Country: es
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum
    • Awards
Re: Tulkas' simulator - progress
« Reply #137 on: September 17, 2010, 03:04:42 AM »
I am getting there guys! This is almost done!

Manual chute handle. I have been thinking how to do this for a while. While it was easy for me to make in wood I wanted a better real feeling so I decide to place a metal bar inside. The bar comes from a bike "leg" (the one for it to stand) that I have saw.

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_1771.jpg
Tulkas' simulator - progress


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_1869.jpg
Tulkas' simulator - progress


Then I thought why not to put to good use my recently acquired metal handling superpowers?  :-P I thought it would be nice to have a metal outside layer

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_1870.jpg
Tulkas' simulator - progress


Made the cut outs with the Dremel and fill it with tons of metal mastic

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2208.jpg
Tulkas' simulator - progress


Some patient and tedious sanding and starts to look good:

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2209.jpg
Tulkas' simulator - progress


Now a small tutorial about how I make my metal parts with a few very normal tools:

First from paper stencils (no real dimensions here at all guys, made them up from pictures) I cut the metal, some parts with those metal "scissors", some parts with the dremel and some parts with a manual coping saw:

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2212.jpg
Tulkas' simulator - progress


With the Dremel I carefully make a groove on the bending lines

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2213.jpg
Tulkas' simulator - progress


Then it is quite easy to make the bendings just by hand:

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2215.jpg
Tulkas' simulator - progress

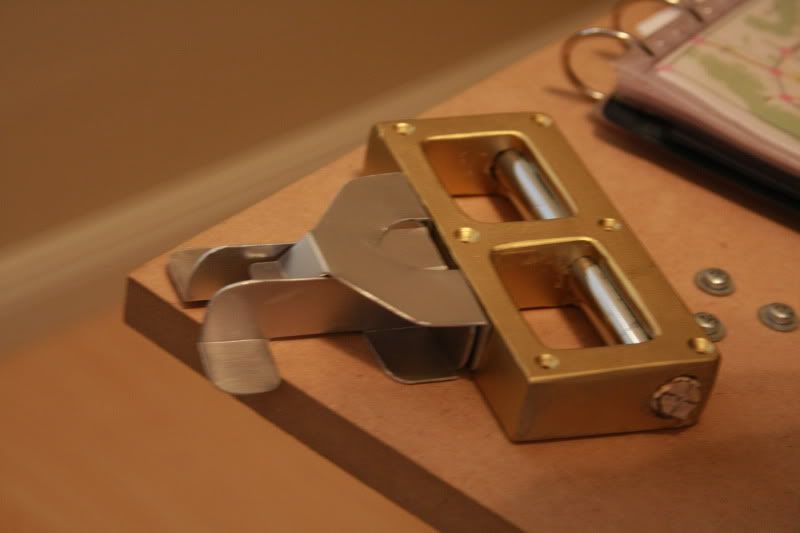

After that is just matter of careful use of metal files to make nice edges and shape them:

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2217.jpg
Tulkas' simulator - progress


As you can see the handle is gold painted but it was too pretty for me and I weathered it to show some of the metal and kill a bit the goldish shine. Doesn't show that well on the pictures but I got very happy with the look. The touch feeling is great thanks to the metal, very solid and cold  :wacko: feels like something real. I just think the sticker is too new and bright in comparision with the old used look I gave to the handle. I may do something about that in the future...

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2218.jpg
Tulkas' simulator - progress


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2224.jpg
Tulkas' simulator - progress


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2220.jpg
Tulkas' simulator - progress


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2221.jpg
Tulkas' simulator - progress


Cheers

Tulkas

« Last Edit: September 17, 2010, 03:28:02 AM by Tulkas »

Offline Taipan

  • General
  • ******
  • Join Date: Jul 2009
  • Location: Melbourne
  • Posts: 1813
  • VP Awards : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum : Veteran Award: Awarded after 5 years of community service : 1000+ posts Award: Awarded for achieving over 1000 posts
    • Awards
Re: Tulkas' simulator - progress
« Reply #138 on: September 17, 2010, 03:15:53 AM »
Really nice work
"If the heat don't get you........"

Offline gancio

  • -=VP Donor=-
  • General
  • *
  • Join Date: Jul 2005
  • Location: Milan
  • Posts: 544
  • Country: it
  • VP Awards : Most Time Online Award: Awarded to those 30 members with most time on the forum : Old Geezer Award: Awarded after 10 years of community service
    • Awards
Re: Tulkas' simulator - progress
« Reply #139 on: September 17, 2010, 03:28:36 AM »
Very nice job Tulkas, very nice.
Giorgio

Offline Cavalier6X

  • -=VP Veteran Donor=-
  • Maj. General
  • *
  • Join Date: May 2005
  • Location: Wailuku, Maui, Hawaii
  • Posts: 317
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service : Most Time Online Award: Awarded to those 30 members with most time on the forum
    • Awards
Re: Tulkas' simulator - progress
« Reply #140 on: September 17, 2010, 04:03:13 AM »
Great work . . . bookmarked for future reference.  :thumbsup:

Jan

Offline Falcao

  • -=VP Veteran Donor=-
  • LT. General
  • *
  • Join Date: Sep 2008
  • Location:
  • Posts: 481
  • Country: 00
  • VP Awards : Veteran Award: Awarded after 5 years of community service
    • Awards
Re: Tulkas' simulator - progress
« Reply #141 on: September 17, 2010, 04:21:04 AM »
Tulkas
simply amazing  :thumbsup:

 :beer:
(v)2Lt Harpoon
872nd Fighter Squadron
http://www.87th.org

Offline 101-Douxx

  • You shall never fail... If you do! Try harder.
  • -=VP Veteran Donor=-
  • General
  • *
  • Join Date: Apr 2006
  • Location: Val-d'Or, Québec, Canada
  • Posts: 2847
  • Country: ca
  • You shall never fail... If you do! Try harder!!!!!
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum : 2000+ posts Award: Awarded for achieving over 2000 posts
    • 101-Douxx's squadron Website
    • Awards
Re: Tulkas' simulator - progress
« Reply #142 on: September 17, 2010, 08:23:57 AM »
With patience and ingeneousity....
We can achieve the impossible.

Great work Tulkas, it really looks amazing.
 :clap:
You shall never fail... If you do... Try harder!!! ;)

Stephane "Douxx" Bourdouxhe
101ECV-QAF
Owner of Cougar#5795 ?2NXT#197
Cougar#4276 RibbStick#29
Cougar#11527 Stock
Simped F-16+
Cockpit site

Offline f16simman

  • -=VP Veteran Donor=-
  • Captain
  • *
  • Join Date: Aug 2010
  • Location: Springfield, Ohio
  • Posts: 58
  • Country: us
  • TM Cougar, OF 4.7
  • VP Awards : Veteran Award: Awarded after 5 years of community service
    • Awards
Re: Tulkas' simulator - progress
« Reply #143 on: September 17, 2010, 11:32:38 AM »
Great Job!!  I Also Bookmarked.
Courage is just fear held on a minute longer!!
Winston Churchill

Offline Tulkas

  • General
  • ******
  • Join Date: Sep 2007
  • Location: Norway
  • Posts: 818
  • Country: es
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum
    • Awards
Re: Tulkas' simulator - progress
« Reply #144 on: November 03, 2010, 05:37:11 AM »
Thank you very much for the feedback guys!

--------------------------------------------------

Small update,

I got some really nice gifts from a friend: a pilot harness and a set of unused UWARS shoulder straps


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2231.jpg
Tulkas' simulator - progress


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/IMG_2229.jpg
Tulkas' simulator - progress


I preinstalled them on the seat and really boost its look:

http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/sillacompleta.jpg
Tulkas' simulator - progress


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/arnes1.jpg
Tulkas' simulator - progress


http://i174.photobucket.com/albums/w90/Tulkas_5Js/Cockpit/sillafrontal.jpg
Tulkas' simulator - progress


I don't have real inertial reel strips so I temporary use strips to attach stuff to the car, they look ok but they are a bit too wide so they don't run through the small pulleys on the shoulder straps.

So guys, if anyone has an avialable set of inertial reel strips and wants to sell...

Un saludo

Tulkas

Offline Nigel

  • Global Moderator
  • General
  • *****
  • Join Date: Feb 2008
  • Location: Franklin, TN
  • Posts: 4041
  • Country: 00
  • VP Awards : Gold Cup Award: Awarded to someone for a special achievement : Gold Medal Award: Awarded for special contributions to the community : Outstanding Build Award: Awarded for an outstanding pit build : Silver Heart Award: Awarded to those showing a real heart for the community and/or it's cause : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum : Veteran Award: Awarded after 5 years of community service : 3000+ posts Award: Awarded for achieving over 3000 posts
    • Awards
Re: Tulkas' simulator - progress
« Reply #145 on: November 03, 2010, 11:32:41 AM »

Then I thought why not to put to good use my recently acquired metal handling superpowers?  :-P I thought it would be nice to have a metal outside layer

Dude, I fell out of my chair laughing at this! BUT your pit and craftsmanship is unbelievable. My hat is off to you, mate! I have a brand new inertia reel from an unknown seat, it is exactly the same as the ACES II but it has a different mounting angle. But with your recently acquired metal handling superpowers, you shall have no problem installing it.
Nigel

Offline gancio

  • -=VP Donor=-
  • General
  • *
  • Join Date: Jul 2005
  • Location: Milan
  • Posts: 544
  • Country: it
  • VP Awards : Most Time Online Award: Awarded to those 30 members with most time on the forum : Old Geezer Award: Awarded after 10 years of community service
    • Awards
Re: Tulkas' simulator - progress
« Reply #146 on: November 03, 2010, 11:40:55 AM »
I will not have your superpower Tulkas,  :taz: even if I wear a costume, mask and mantle! :biggrin:
Great Job mate, great job.
Giorgio

Offline Tulkas

  • General
  • ******
  • Join Date: Sep 2007
  • Location: Norway
  • Posts: 818
  • Country: es
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum
    • Awards
Re: Tulkas' simulator - progress
« Reply #147 on: November 10, 2010, 08:05:28 AM »
Hi guys.

I am having a hard time trying to find some straps to use under the bottom cushion in the ACESII.

I don?t look for the real ones, I have the real push-dot button to rivet in whatever strap so I just look for nylon straps, 1 3/4" (4-4.5 cm) wide in olive drabb even kakki or gray will be ok. I found a ton i ebay but they are alwas to narrow, most of them 1".

I will be grateful if anyone can give me a hint where to find.

Thank you very much!

Tulkas

Offline TOR

  • Global Moderator
  • General
  • *****
  • Join Date: Sep 2006
  • Location: Denmark
  • Posts: 2179
  • Country: dk
  • VP Awards : Old Geezer Award: Awarded after 10 years of community service : Top Poster Award: for those 30 members with most posts : 2000+ posts Award: Awarded for achieving over 2000 posts : Most Time Online Award: Awarded to those 30 members with most time on the forum
    • Awards
Re: Tulkas' simulator - progress
« Reply #148 on: November 10, 2010, 11:02:34 AM »
Hi guys.

I am having a hard time trying to find some straps to use under the bottom cushion in the ACESII.

I don?t look for the real ones, I have the real push-dot button to rivet in whatever strap so I just look for nylon straps, 1 3/4" (4-4.5 cm) wide in olive drabb even kakki or gray will be ok. I found a ton i ebay but they are alwas to narrow, most of them 1".

I will be grateful if anyone can give me a hint where to find.

Thank you very much!

Tulkas

How about straps used for holding down goods... on trailers etc.!!?

TOR

Offline Nigel

  • Global Moderator
  • General
  • *****
  • Join Date: Feb 2008
  • Location: Franklin, TN
  • Posts: 4041
  • Country: 00
  • VP Awards : Gold Cup Award: Awarded to someone for a special achievement : Gold Medal Award: Awarded for special contributions to the community : Outstanding Build Award: Awarded for an outstanding pit build : Silver Heart Award: Awarded to those showing a real heart for the community and/or it's cause : Top Poster Award: for those 30 members with most posts : Most Time Online Award: Awarded to those 30 members with most time on the forum : Veteran Award: Awarded after 5 years of community service : 3000+ posts Award: Awarded for achieving over 3000 posts
    • Awards
Re: Tulkas' simulator - progress
« Reply #149 on: November 10, 2010, 04:37:42 PM »
Tulkas,
Junkyard. Old seat and shoulder belts from cars. They are just right.
Nigel
